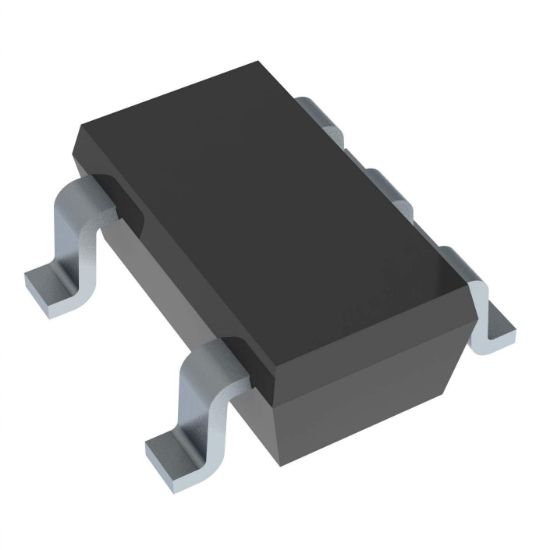

Picture of UCC27536DBVR

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Driven Configuration	Low-Side
Channel Type	Single
Number of Drivers	1
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 32V
Logic Voltage - VIL, VIH	1.2V, 2.2V
Current - Peak Output (Source, Sink)	2.5A, 2.5A
Input Type	Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	15ns, 10ns
Operating Temperature	-40°C ~ 140°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5

UCC27536DBVR

Availability: In stock

Bulk RFQ

Bulk BID

UCC27536DBVR - 2 verified offers available

Stock	Lead Time	Date Code
3000 pcs	3-7 Days	2132+

$

Stock	Lead Time	Date Code
3000 pcs	3-7 Days	2132

$
