Products specifications
Attribute name Attribute value
Series -
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Voltage - Supply 4.5V ~ 18V
Logic Voltage - VIL, VIH 1V, 2.3V
Current - Peak Output (Source, Sink) 5A, 5A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) -
Rise / Fall Time (Typ) 7ns, 6ns
Operating Temperature -40°C ~ 140°C (TJ)
Grade -
Qualification -
Mounting Type Surface Mount

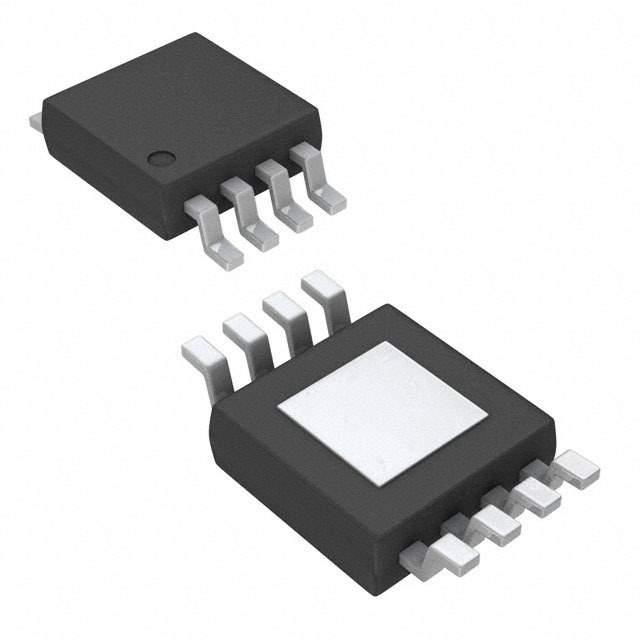

Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package 8-HVSSOP

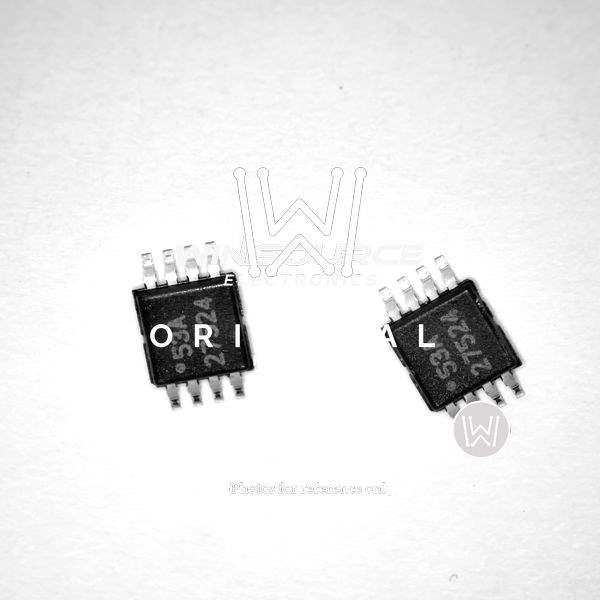

UCC27524DGNR

Availability: In stock
PartsWake
Bulk RFQ Bulk BID

UCC27524DGNR - 3 verified offers available

Stock Lead Time Date Code
2303 pcs 3-7 Days 20+
$
Stock Lead Time Date Code
1165 pcs 3-7 Days 22+
$
Stock Lead Time Date Code
1165 pcs 3-7 Days 22
$
