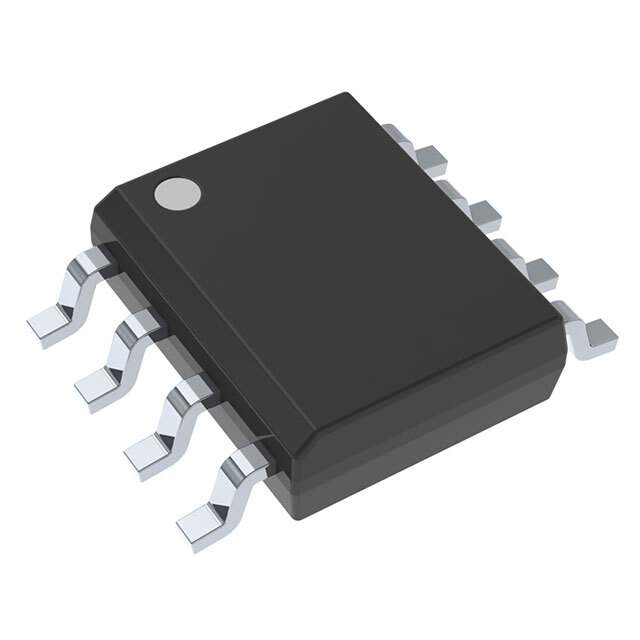

Picture of UCC27524ADR

UCC27524ADR

Texas Instruments

IC GATE DRVR LOW-SIDE 8SOIC

UCC27524ADR Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Driven Configuration	Low-Side
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	4.5V ~ 18V
Logic Voltage - VIL, VIH	1V, 2.3V
Current - Peak Output (Source, Sink)	5A, 5A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	7ns, 6ns
Operating Temperature	-40°C ~ 140°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
