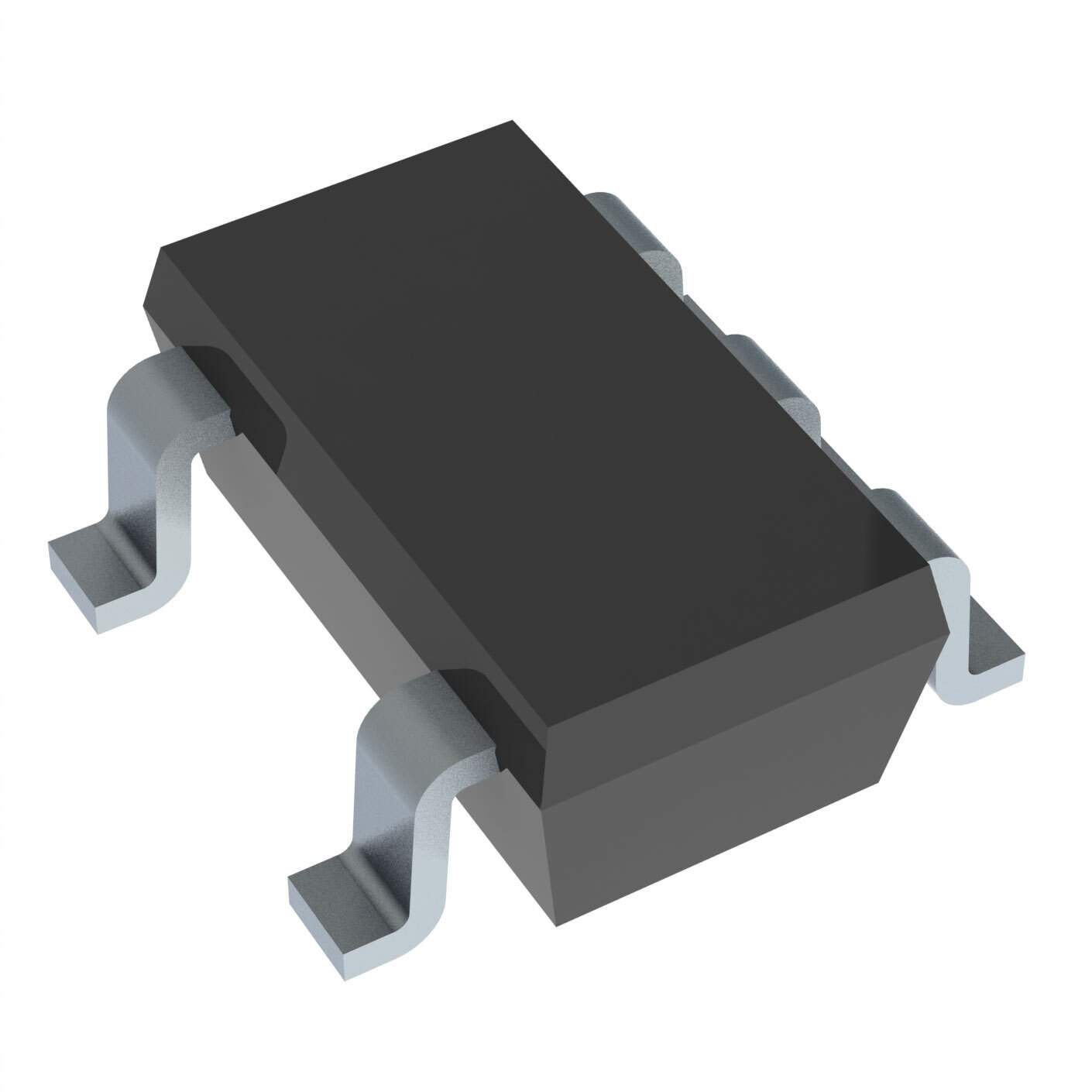

Picture of UCC27517DBVT

UCC27517DBVT

Texas Instruments

IC GATE DRVR LOW-SIDE SOT23-5

UCC27517DBVT Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Driven Configuration	Low-Side
Channel Type	Single
Number of Drivers	1
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	4.5V ~ 18V
Logic Voltage - VIL, VIH	1V, 2.4V
Current - Peak Output (Source, Sink)	4A, 4A
Input Type	Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	8ns, 7ns
Operating Temperature	-40°C ~ 140°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
