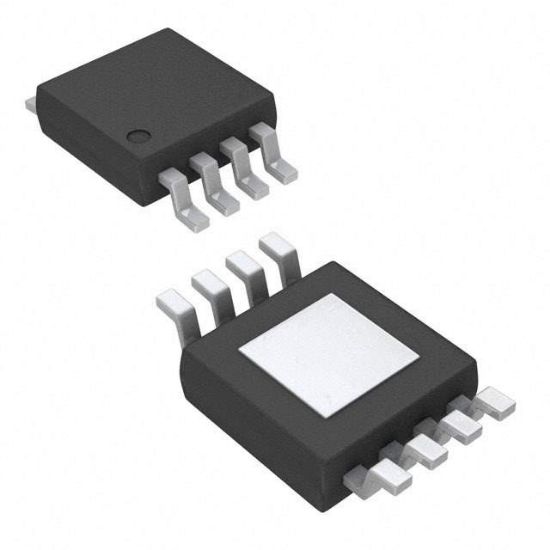

Picture of UCC27321DGN

Products specifications

Attribute name	Attribute value
Series	-
Package	Tube
Product Status	Obsolete
Driven Configuration	Low-Side
Channel Type	Single
Number of Drivers	1
Gate Type	N-Channel, P-Channel MOSFET
Voltage - Supply	4V ~ 15V
Logic Voltage - VIL, VIH	1V, 2V
Current - Peak Output (Source, Sink)	9A, 9A
Input Type	Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	20ns, 20ns
Operating Temperature	-40°C ~ 105°C (TA)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	8-HVSSOP

UCC27321DGN

Availability: In stock

Bulk RFQ

Bulk BID

UCC27321DGN - 3 verified offers available

Stock	Lead Time	Date Code
25 pcs	3-7 Days	2008

$

Stock	Lead Time	Date Code
714 pcs	3-7 Days	22+

$

Stock	Lead Time	Date Code
885 pcs	3-7 Days	within 2 yrs

$
