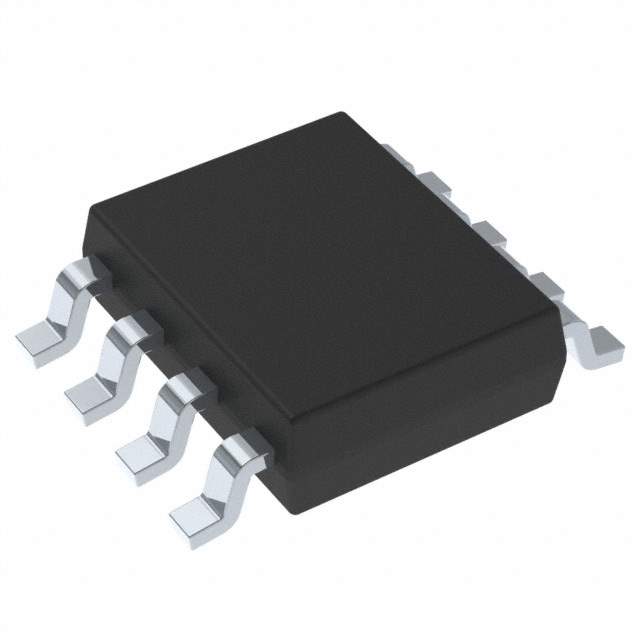

Picture of UCC27211DDAR

UCC27211DDAR

Texas Instruments

IC GATE DRVR HALF-BRIDGE 8SOPWR

UCC27211DDAR Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT);Bulk
Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	8V ~ 17V
Logic Voltage - VIL, VIH	1.3V, 2.8V
Current - Peak Output (Source, Sink)	4A, 4A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	120 V
Rise / Fall Time (Typ)	7.2ns, 5.5ns
Operating Temperature	-40°C ~ 140°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO PowerPad
