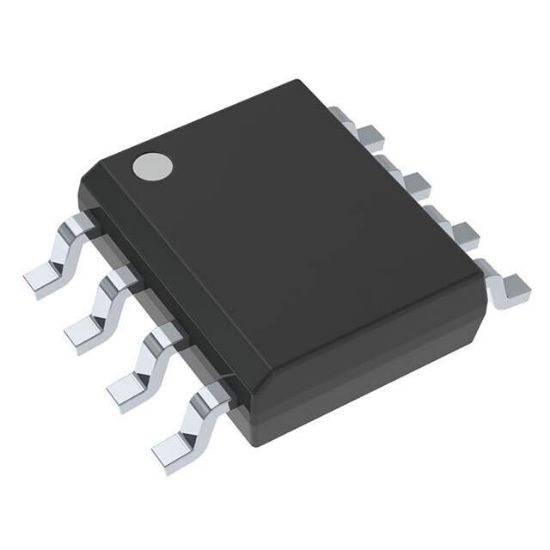

Picture of UCC27200DR

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT);Bulk
Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	8V ~ 17V
Logic Voltage - VIL, VIH	3V, 8V
Current - Peak Output (Source, Sink)	3A, 3A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	120 V
Rise / Fall Time (Typ)	8ns, 7ns
Operating Temperature	-40°C ~ 140°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

UCC27200DR

Availability: In stock

Bulk RFQ

Bulk BID

UCC27200DR - 2 verified offers available

Stock	Lead Time	Date Code
2500 pcs	3-7 Days	2134+

$

Stock	Lead Time	Date Code
2500 pcs	3-7 Days	2134

$
