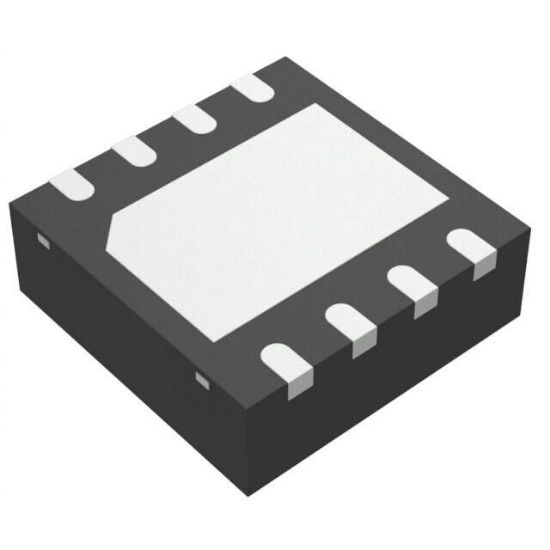

Picture of TPS51601ADRBR

TPS51601ADRBR

Texas Instruments

IC GATE DRVR HALF-BRIDGE 8SON

TPS51601ADRBR Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT);Bulk
Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	4.5V ~ 5.5V
Logic Voltage - VIL, VIH	0.7V, 4V
Current - Peak Output (Source, Sink)	-
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	15ns, 10ns
Operating Temperature	-40°C ~ 105°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-SON (3x3)
