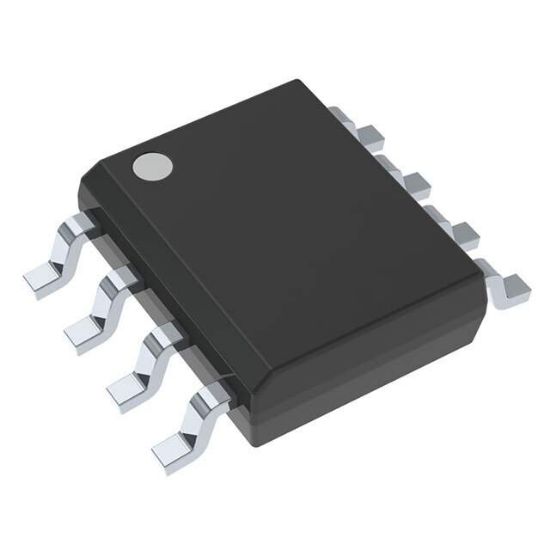

Picture of TPS2812DR

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Driven Configuration	Low-Side
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	4V ~ 14V
Logic Voltage - VIL, VIH	1V, 4V
Current - Peak Output (Source, Sink)	2A, 2A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	14ns, 15ns
Operating Temperature	-40°C ~ 125°C (TA)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

TPS2812DR

Texas Instruments

Availability: In stock

Bulk RFQ

Bulk BID

TPS2812DR - 2 verified offers available

Stock	Lead Time	Date Code
10000 pcs	3-7 Days	2113+

$

Stock	Lead Time	Date Code
10000 pcs	3-7 Days	2113

$
