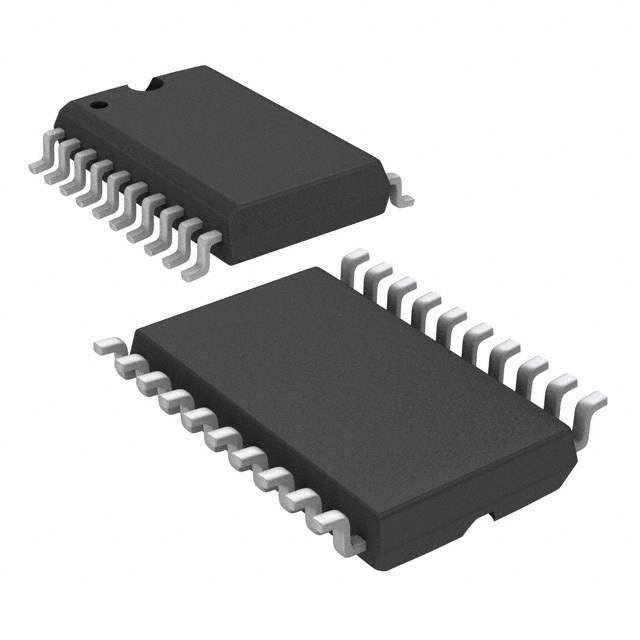

Picture of TPIC6B595DWR

TPIC6B595DWR

Texas Instruments

IC PWR 8-BIT SHIFT REGIS 20-SOIC

TPIC6B595DWR Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Logic Type	Shift Register
Output Type	Open Drain
Number of Elements	1
Number of Bits per Element	8
Function	Serial to Parallel, Serial
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SOIC
