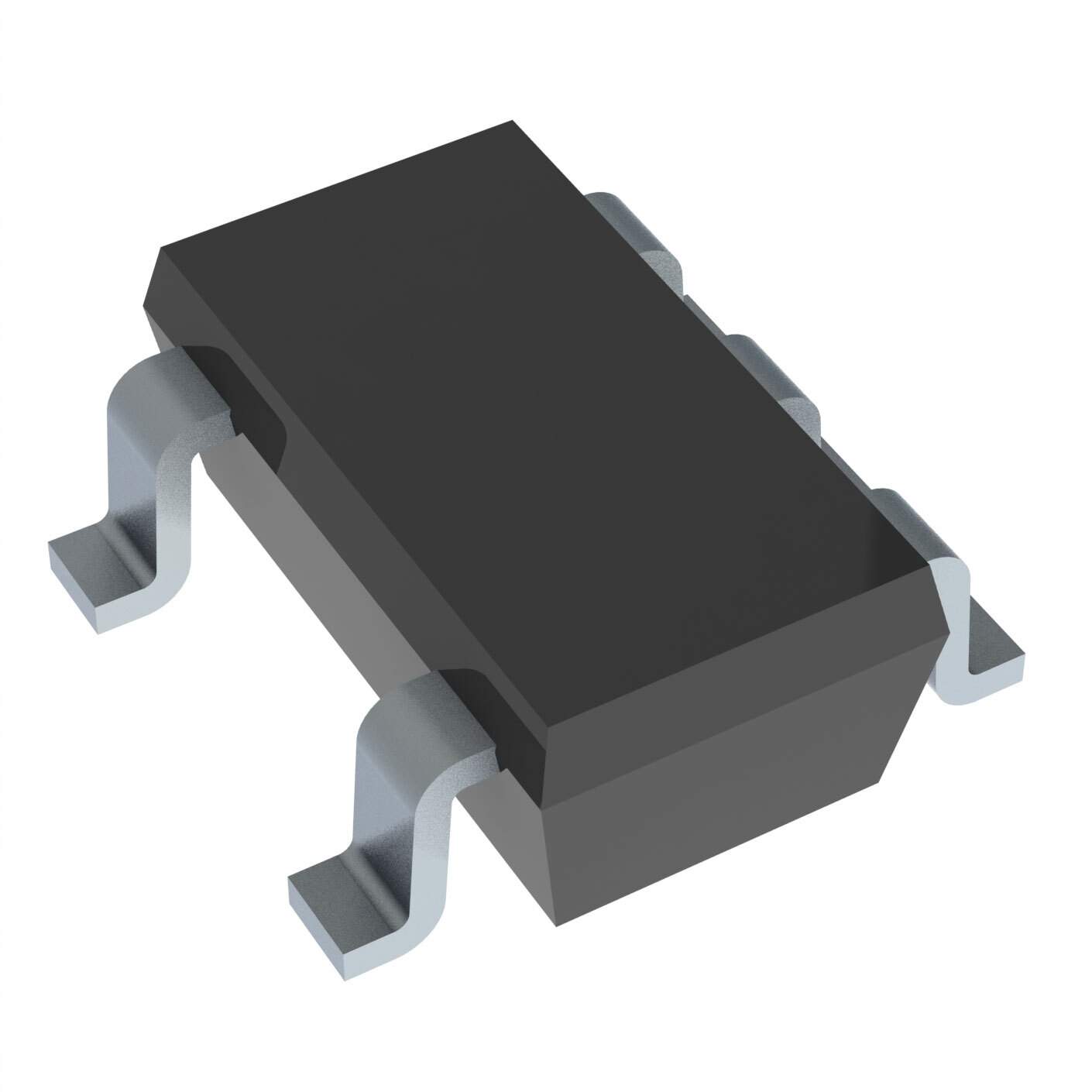

Picture of TLV431AIDBVR

TLV431AIDBVR

Texas Instruments

IC VREF SHUNT ADJ 1% SOT23-5

TLV431AIDBVR Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT);Bulk
Product Status	Active
Reference Type	Shunt
Output Type	Adjustable
Voltage - Output (Min/Fixed)	1.24V
Voltage - Output (Max)	6 V
Current - Output	15 mA
Tolerance	±1%
Temperature Coefficient	-
Noise - 0.1Hz to 10Hz	-
Noise - 10Hz to 10kHz	-
Voltage - Input	-
Current - Supply	-
Current - Cathode	80 µA
Operating Temperature	-40°C ~ 85°C (TA)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
