Products specifications

Attribute name	Attribute value
Series	-
Package	Tube
Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	40kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	2.5 A
Data Rate	-
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Rise / Fall Time (Typ)	50ns, 50ns
Voltage - Forward (Vf) (Typ)	1.57V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	10V ~ 30V
Grade	-
Qualification	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP

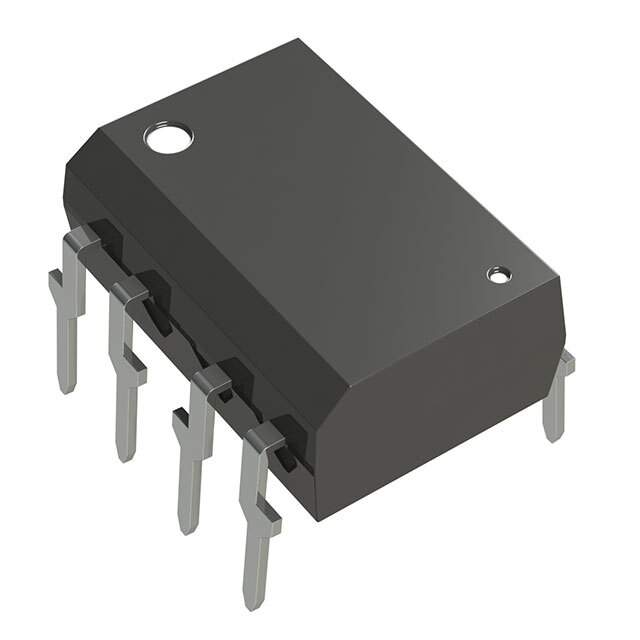

TLP250H(F)

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
39000 pcs	3-7 Days	25+

Stock	Lead Time	Date Code
39000 pcs	3-7 Days	25
