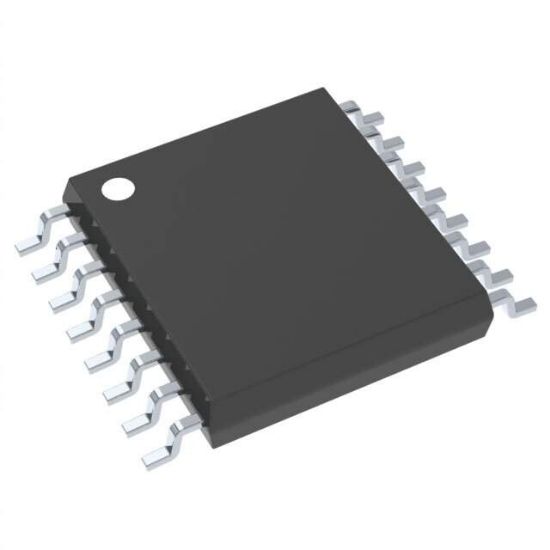

Picture of TLC7524CPWR

TLC7524CPWR

Texas Instruments

IC DAC 8BIT A-OUT 16TSSOP

TLC7524CPWR Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR)
Product Status	Active
Number of Bits	8
Number of D/A Converters	1
Settling Time	100ns
Output Type	Current - Unbuffered
Differential Output	Yes
Data Interface	Parallel
Reference Type	External
Voltage - Supply, Analog	5V, 14.5V ~ 15.5V
Voltage - Supply, Digital	5V, 14.5V ~ 15.5V
INL/DNL (LSB)	±0.5 (Max), ±2.5 (Max)
Architecture	R-2R
Operating Temperature	0°C ~ 70°C
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
Mounting Type	Surface Mount
Grade	-
Qualification	-
