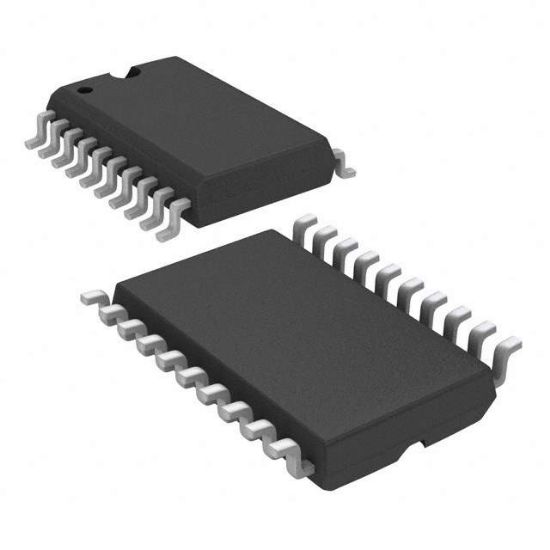

Picture of TLC7226CDWR

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Number of Bits	8
Number of D/A Converters	4
Settling Time	20µs
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	Parallel
Reference Type	External
Voltage - Supply, Analog	11.4V ~ 16.5V, -5.5V
Voltage - Supply, Digital	-
INL/DNL (LSB)	±1 (Max), ±1 (Max)
Architecture	R-2R
Operating Temperature	0°C ~ 70°C
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SOIC
Mounting Type	Surface Mount
Grade	-
Qualification	-

TLC7226CDWR

Texas Instruments

Availability: In stock

Bulk RFQ

Bulk BID

TLC7226CDWR - 2 verified offers available

Stock	Lead Time	Date Code
2000 pcs	3-7 Days	23+

$

Stock	Lead Time	Date Code
2000 pcs	3-7 Days	23

$
