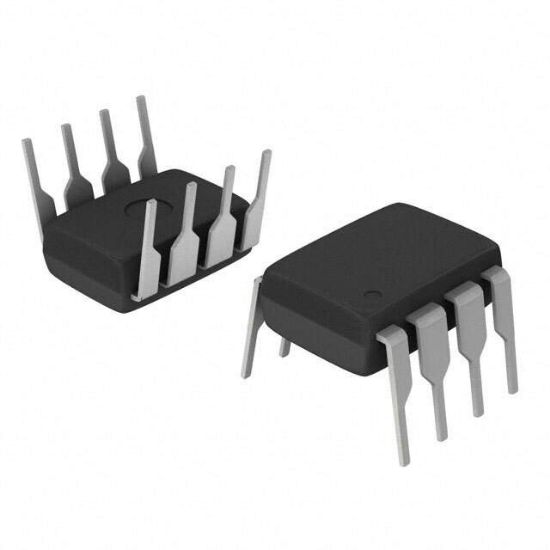

Picture of TLC5615CP

TLC5615CP

Texas Instruments

IC DAC 10BIT V-OUT 8DIP

TLC5615CP Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Bulk;Tube
Product Status	Active
Number of Bits	10
Number of D/A Converters	1
Settling Time	12.5µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI
Reference Type	External
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	5V
INL/DNL (LSB)	±1 (Max), ±0.1
Architecture	String DAC
Operating Temperature	0°C ~ 70°C
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-PDIP
Mounting Type	Through Hole
Grade	-
Qualification	-
