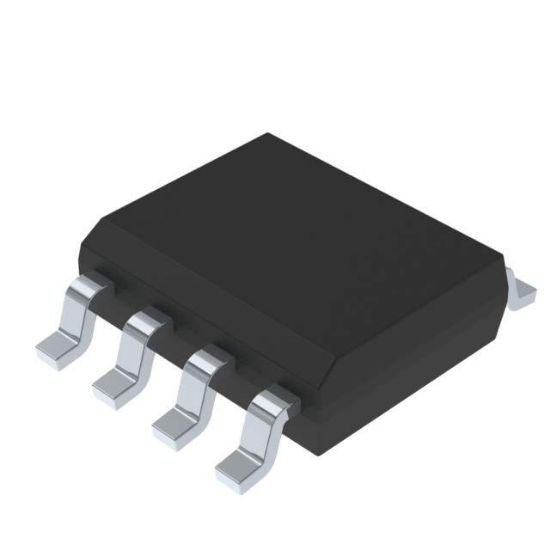

Picture of TL431AIYDT

TL431AIYDT

STMicroelectronics

IC VREF SHUNT ADJ 1% 8SO

TL431AIYDT Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Reference Type	Shunt
Output Type	Adjustable
Voltage - Output (Min/Fixed)	2.495V
Voltage - Output (Max)	36 V
Current - Output	100 mA
Tolerance	±1%
Temperature Coefficient	-
Noise - 0.1Hz to 10Hz	-
Noise - 10Hz to 10kHz	-
Voltage - Input	-
Current - Supply	-
Current - Cathode	700 µA
Operating Temperature	-40°C ~ 125°C (TA)
Grade	Automotive
Qualification	AEC-Q100
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
