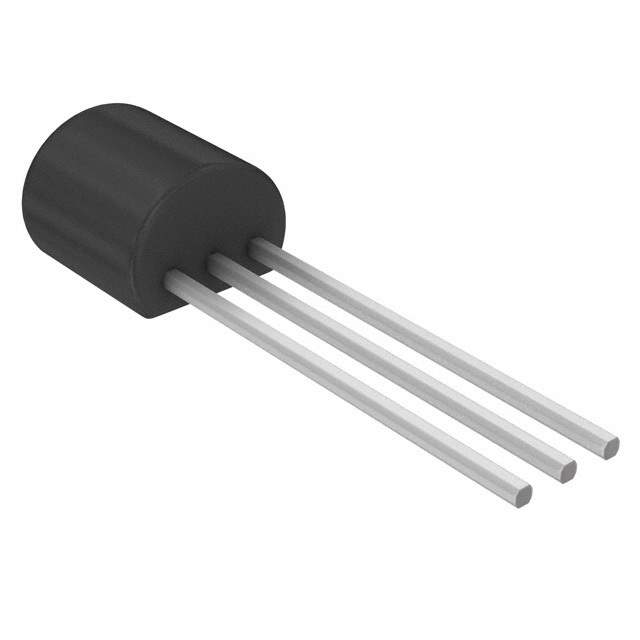

Picture of TL431ACLP

TL431ACLP

Microsemi Corporation

IC VREF SHUNT ADJ 1% TO92-3

TL431ACLP Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Strip
Product Status	Obsolete
Reference Type	Shunt
Output Type	Adjustable
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	36 V
Current - Output	100 mA
Tolerance	±1%
Temperature Coefficient	30ppm/°C Typical
Noise - 0.1Hz to 10Hz	-
Noise - 10Hz to 10kHz	-
Voltage - Input	-
Current - Supply	-
Current - Cathode	1 mA
Operating Temperature	0°C ~ 70°C (TA)
Grade	-
Qualification	-
Mounting Type	Through Hole
Package / Case	TO-226-2, TO-92-2 (TO-226AC)
Supplier Device Package	TO-92-3
