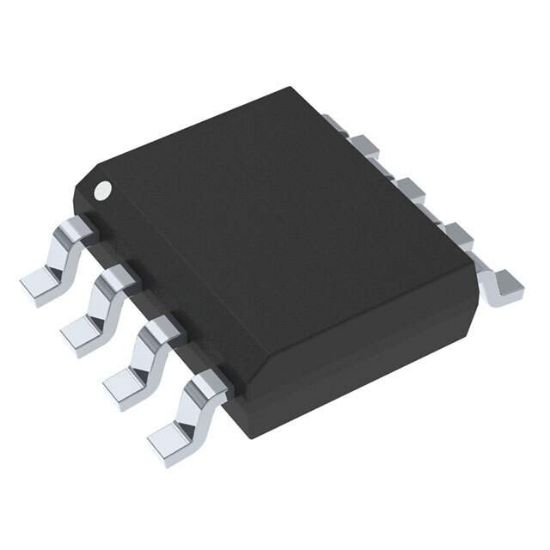

Picture of TL431ACDG

Products specifications

Attribute name	Attribute value
Series	-
Package	Tube
Product Status	Active
Reference Type	Shunt
Output Type	Adjustable
Voltage - Output (Min/Fixed)	2.495V
Voltage - Output (Max)	36 V
Current - Output	100 mA
Tolerance	±1%
Temperature Coefficient	50ppm/°C Typical
Noise - 0.1Hz to 10Hz	-
Noise - 10Hz to 10kHz	-
Voltage - Input	-
Current - Supply	-
Current - Cathode	1 mA
Operating Temperature	0°C ~ 70°C (TA)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

TL431ACDG

Availability: In stock

Bulk RFQ

Bulk BID

TL431ACDG - 2 verified offers available

Stock	Lead Time	Date Code
553 pcs	3-7 Days	06+

$

Stock	Lead Time	Date Code
553 pcs	3-7 Days	6

$
