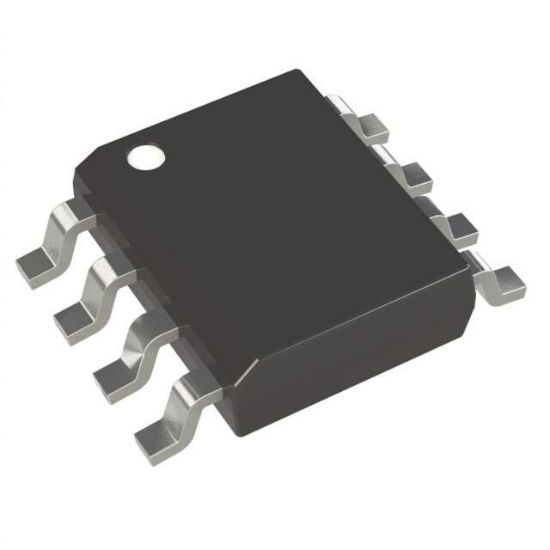

Picture of TC4427EOA

TC4427EOA

Microchip Technology

IC GATE DRVR LOW-SIDE 8SOIC

TC4427EOA Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tube
Product Status	Active
Driven Configuration	Low-Side
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel, P-Channel MOSFET
Voltage - Supply	4.5V ~ 18V
Logic Voltage - VIL, VIH	0.8V, 2.4V
Current - Peak Output (Source, Sink)	1.5A, 1.5A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	19ns, 19ns
Operating Temperature	-40°C ~ 85°C (TA)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
