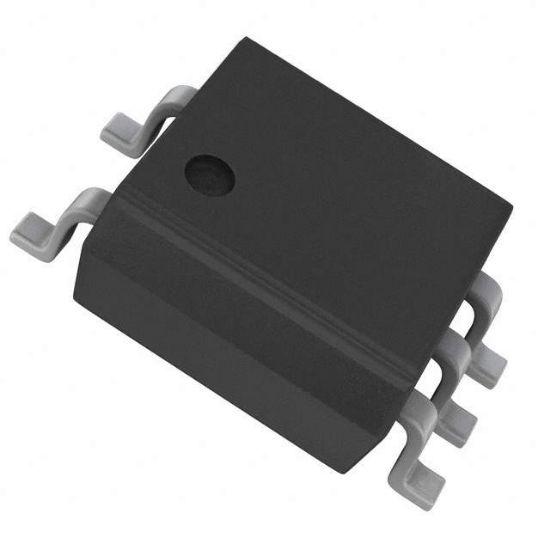

PS9117A-F3-AX

CEL

OPTOISO 3.75KV OPN COLLECTOR 5SO

Bulk RFQ

Products specifications

Attribute name	Attribute value
Package	Tape & Reel (TR);Cut Tape (CT)
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	25 mA
Data Rate	10Mbps
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	20ns, 5ns
Voltage - Forward (Vf) (Typ)	1.65V
Current - DC Forward (If) (Max)	30mA
Voltage - Supply	4.5V ~ 5.5V
Grade	-
Qualification	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-SO
