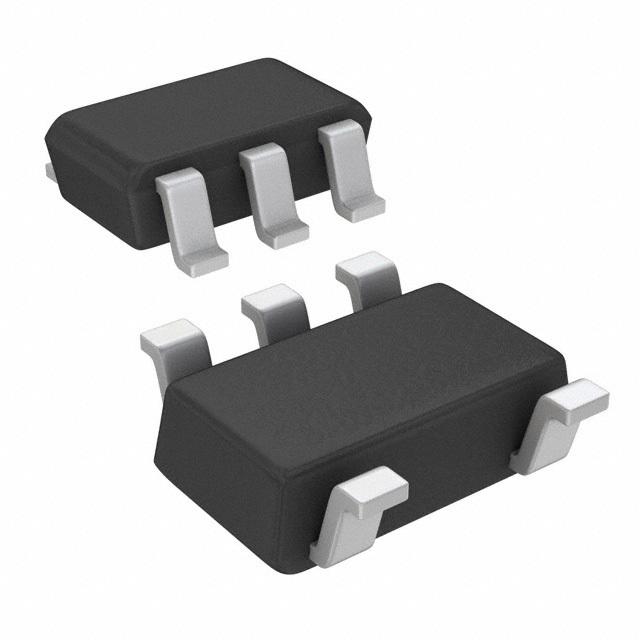

Picture of PM8841D

PM8841D

STMicroelectronics

IC GATE DRVR LOW-SIDE SOT23-5

PM8841D Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Driven Configuration	Low-Side
Channel Type	Single
Number of Drivers	1
Gate Type	N-Channel, P-Channel MOSFET
Voltage - Supply	10V ~ 18V
Logic Voltage - VIL, VIH	-
Current - Peak Output (Source, Sink)	800mA, 1A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	20ns, 20ns (Max)
Operating Temperature	-40°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
