Products specifications

Attribute name	Attribute value
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.087" (2.20mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	-
Insulation Height	0.626" (15.90mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled
Features	Board Lock
Operating Temperature	-40°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	-
Insulation Color	Gray
Current Rating (Amps)	3A
Voltage Rating	-

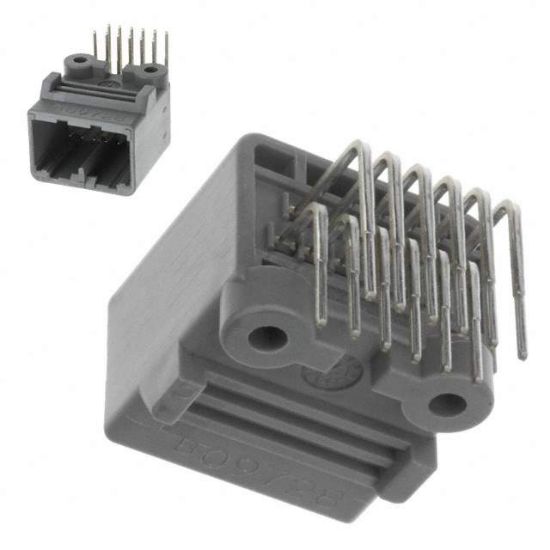

MX34012NF1

JAE Electronics

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
513 pcs	3-7 Days	21+

Stock	Lead Time	Date Code
513 pcs	3-7 Days	21
