Products specifications

Attribute name	Attribute value
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	18
Number of Rows	2
Row Spacing - Mating	0.173" (4.40mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	-
Contact Length - Post	0.122" (3.10mm)
Overall Contact Length	-
Insulation Height	0.720" (18.30mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Guide
Operating Temperature	-40°C ~ 125°C
Ingress Protection	Waterproof
Material Flammability Rating	-
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	-

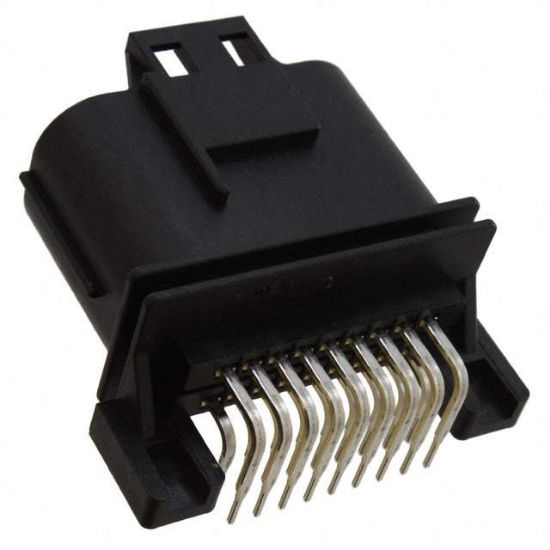

MX23A18NF1

JAE Electronics

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
7397 pcs	3-7 Days	21+

Stock	Lead Time	Date Code
7397 pcs	3-7 Days	21
