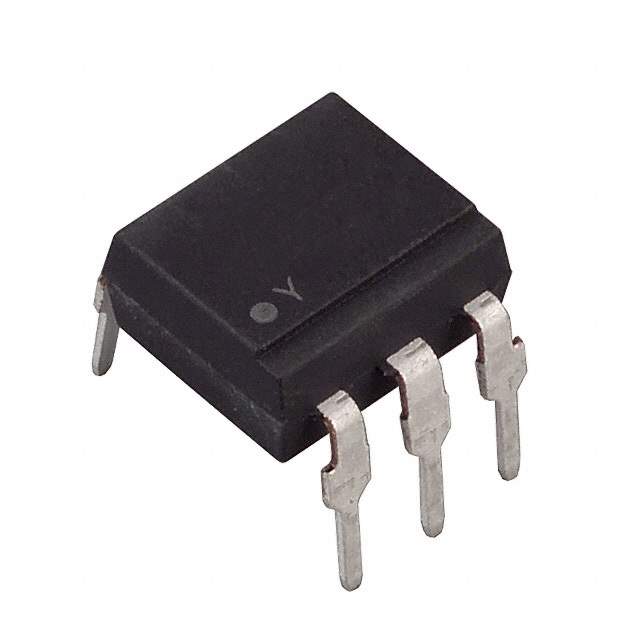

Picture of MOC3022

MOC3022

Lite-On Inc.

OPTOISOLATOR 5KV TRIAC 6DIP

MOC3022 Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Package	Tube
Product Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	5000Vrms
Voltage - Off State	400 V
Static dV/dt (Min)	1kV/µs
Current - LED Trigger (Ift) (Max)	10mA
Current - On State (It (RMS)) (Max)	-
Current - Hold (Ih)	250µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Approval Agency	CQC, CSA, TUV, UL, VDE
