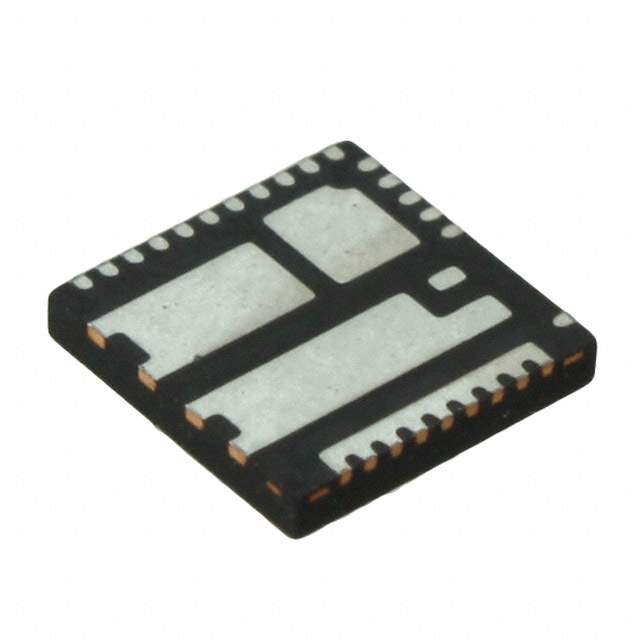

Picture of IR3550MTRPBF

IR3550MTRPBF

Infineon Technologies

IC HALF BRIDGE DRIVER 60A 32QFN

IR3550MTRPBF Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Package	Tape & Reel (TR)
Product Status	Obsolete
Output Configuration	Half Bridge
Applications	Synchronous Buck Converters, Voltage Regulators
Interface	PWM
Load Type	Inductive
Technology	Power MOSFET
Rds On (Typ)	-
Current - Output / Channel	60A
Current - Peak Output	90A
Voltage - Supply	4.5V ~ 7V
Voltage - Load	4.5V ~ 15V
Operating Temperature	-40°C ~ 125°C (TJ)
Grade	-
Qualification	-
Features	Bootstrap Circuit, Diode Emulation, Status Flag
Fault Protection	Over Temperature, Shoot-Through, UVLO
Mounting Type	Surface Mount
Package / Case	32-PowerVFQFN
Supplier Device Package	32-PQFN (6x6)
