Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR)
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	26.5A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	800 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	6.2W (Ta), 31W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6)
Package / Case	8-PowerSMD, Flat Leads

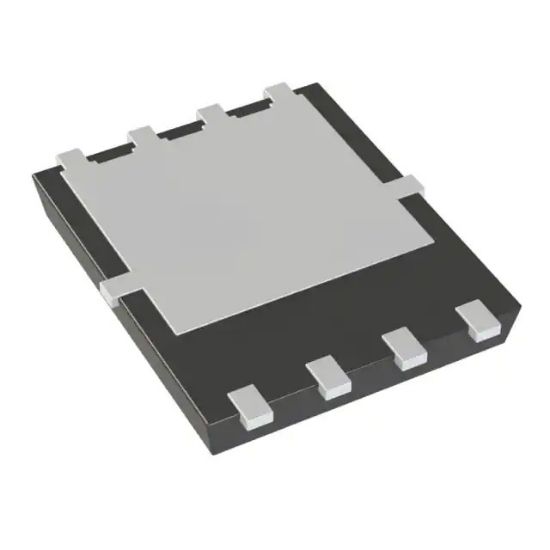

AONS36346

Alpha & Omega Semiconductor Inc.

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
6000 pcs	3-7 Days	22+

Stock	Lead Time	Date Code
6000 pcs	3-7 Days	22
