Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR)
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	38 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2220 pF @ 12.5 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 50W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Supplier Device Package	TO-252 (DPAK)
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63

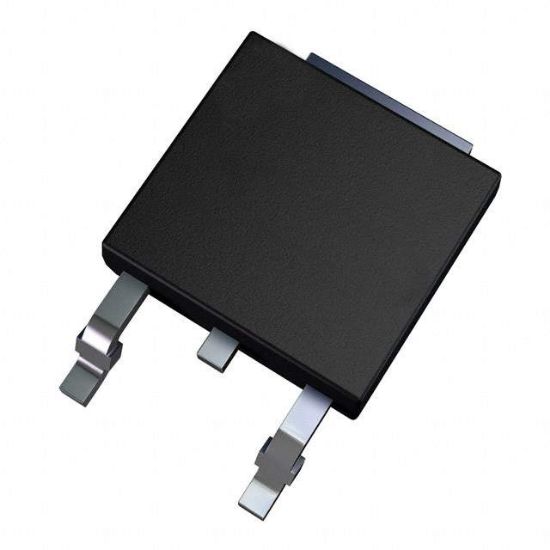

AOD456

Alpha & Omega Semiconductor Inc.

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
5183 pcs	3-7 Days	2017
