Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	630mOhm @ 1A, 10V
Vgs(th) (Max) @ Id	2.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	100 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	1.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount

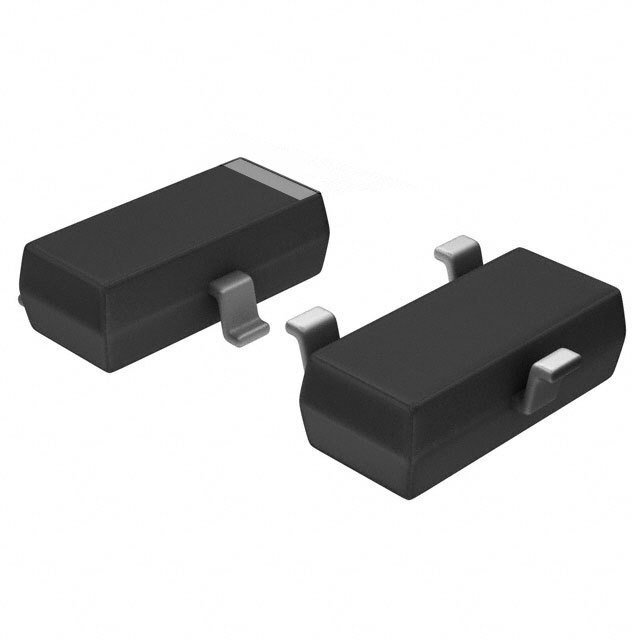

Supplier Device Package	SOT-23-3
Package / Case	3-SMD, SOT-23-3 Variant

AO3442

Alpha & Omega Semiconductor Inc.

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
12683 pcs	3-7 Days	within 2 yrs
