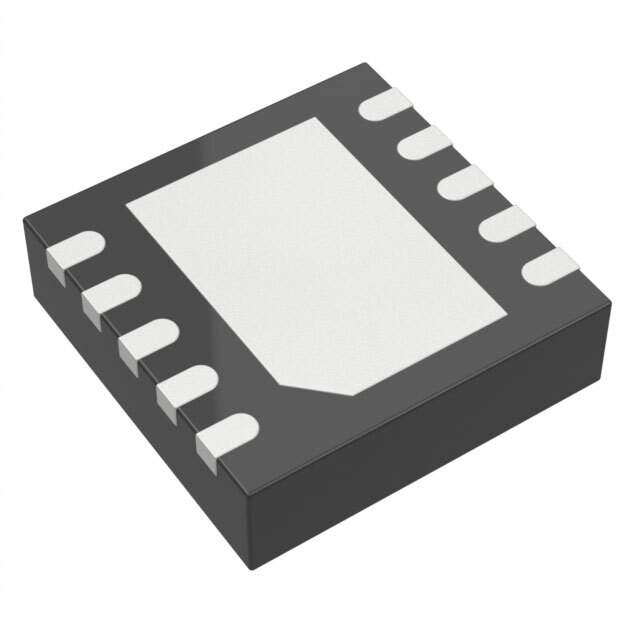

ADP7158ACPZ-1.8-R7

Analog Devices Inc.

IC REG LINEAR 1.8V 2A 10LFCSP

Bulk RFQ

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	2A
Current - Quiescent (Iq)	8 mA
Current - Supply (Max)	14 mA
PSRR	70dB ~ 50dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad, CSP
Supplier Device Package	10-LFCSP-WD (3x3)
