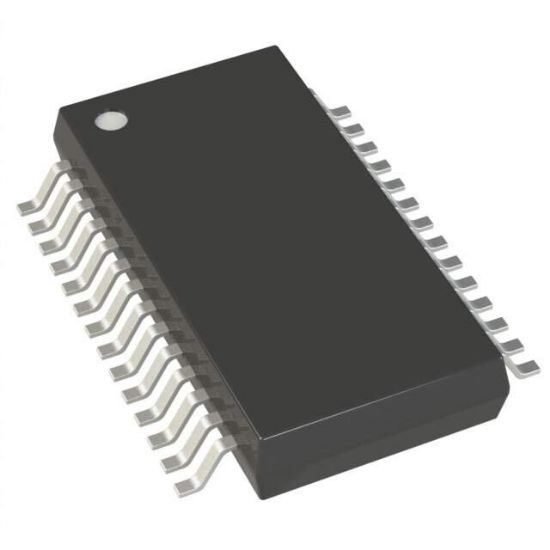

Picture of AD5554BRSZ

AD5554BRSZ

Analog Devices Inc.

IC DAC 14BIT A-OUT 28SSOP

AD5554BRSZ Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tube
Product Status	Active
Number of Bits	14
Number of D/A Converters	4
Settling Time	900ns
Output Type	Current - Unbuffered
Differential Output	No
Data Interface	SPI
Reference Type	External
Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±0.5 (Max), ±1 (Max)
Architecture	R-2R
Operating Temperature	-40°C ~ 125°C
Package / Case	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package	28-SSOP
Mounting Type	Surface Mount
Grade	-
Qualification	-
