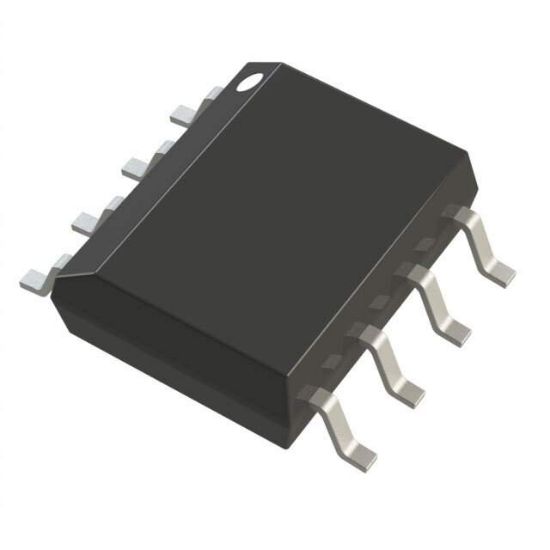

Picture of AD5543BRZ

AD5543BRZ

Analog Devices Inc.

IC DAC 16BIT A-OUT 8SOIC

AD5543BRZ Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tube
Product Status	Active
Number of Bits	16
Number of D/A Converters	1
Settling Time	500ns (Typ)
Output Type	Current - Unbuffered
Differential Output	No
Data Interface	SPI
Reference Type	External
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	5V
INL/DNL (LSB)	±2 (Max), ±1 (Max)
Architecture	R-2R
Operating Temperature	-40°C ~ 85°C
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Mounting Type	Surface Mount
Grade	-
Qualification	-
