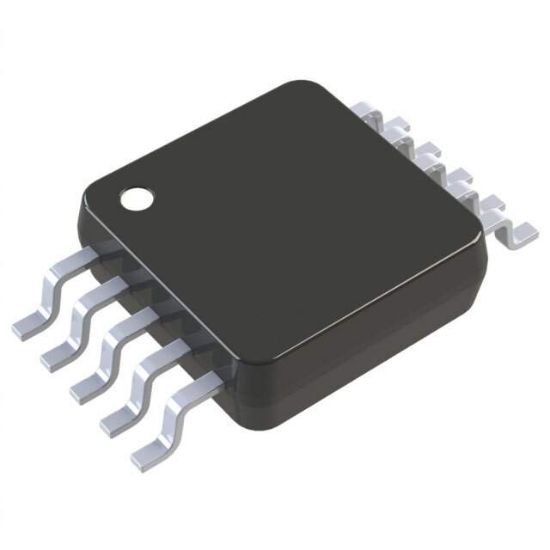

Picture of AD5324BRMZ-REEL7

AD5324BRMZ-REEL7

Analog Devices Inc.

IC DAC 12BIT V-OUT 10MSOP

AD5324BRMZ-REEL7 Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Number of Bits	12
Number of D/A Converters	4
Settling Time	10µs
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI, DSP
Reference Type	External
Voltage - Supply, Analog	2.5V ~ 5.5V
Voltage - Supply, Digital	2.5V ~ 5.5V
INL/DNL (LSB)	±2, ±0.2
Architecture	String DAC
Operating Temperature	-40°C ~ 105°C
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
Mounting Type	Surface Mount
Grade	-
Qualification	-
