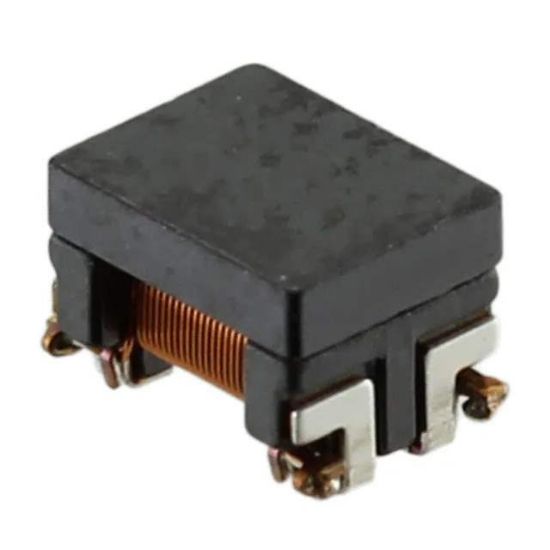

Picture of ACT1210-220-2P-TL00

ACT1210-220-2P-TL00

TDK Corporation

CMC 22UH 250MA 2LN 1.1KOHM SMD

ACT1210-220-2P-TL00 Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	1.1 kOhms @ 10 MHz
Inductance @ Frequency	22 µH @ 100 kHz
Current Rating (Max)	250mA
DC Resistance (DCR) (Max)	500mOhm
Voltage Rating - DC	80V
Voltage Rating - AC	-
Operating Temperature	-55°C ~ 150°C
Ratings	AEC-Q200
Approval Agency	-
Features	-
Grade	-
Qualification	-
Mounting Type	Surface Mount
Size / Dimension	0.154" L x 0.098" W (3.90mm x 2.50mm)
Height (Max)	0.098" (2.50mm)
Package / Case	Horizontal, 4 PC Pad
