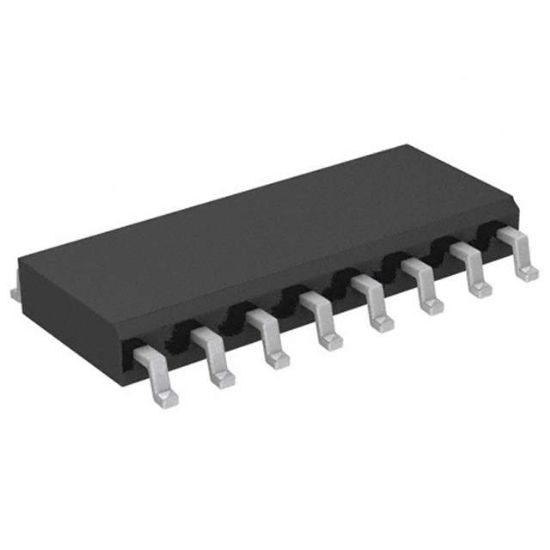

Picture of ACSL-6410-00TE

ACSL-6410-00TE

Broadcom Limited

OPTOISO 2.5KV 4CH OPEN COLL 16SO

ACSL-6410-00TE Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tube
Product Status	Active
Number of Channels	4
Inputs - Side 1/Side 2	3/1
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	15MBd
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	30ns, 12ns
Voltage - Forward (Vf) (Typ)	1.52V
Current - DC Forward (If) (Max)	15mA
Voltage - Supply	3V ~ 5.5V
Grade	-
Qualification	-
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
