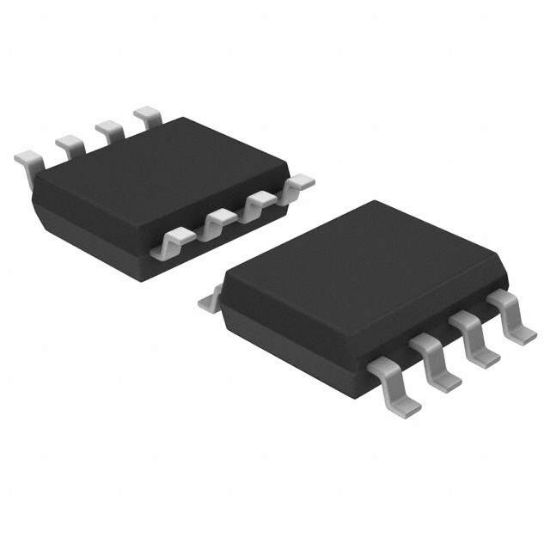

Picture of ACS714LLCTR-30A-T

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Not For New Designs
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	30A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	66mV/A
Frequency	DC ~ 80kHz
Linearity	±1.5%
Accuracy	±1.5%
Voltage - Supply	5V
Response Time	3.5µs
Current - Supply (Max)	13mA
Operating Temperature	-40°C ~ 150°C
Grade	-
Qualification	-
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

ACS714LLCTR-30A-T

Availability: In stock

Bulk RFQ

Bulk BID

ACS714LLCTR-30A-T - 4 verified offers available

Stock	Lead Time	Date Code
1686 pcs	3-7 Days	20+

$

Stock	Lead Time	Date Code
2672 pcs	3-7 Days	2143

$

Stock	Lead Time	Date Code
77 pcs	3-7 Days	19+

$

Stock	Lead Time	Date Code
1686 pcs	3-7 Days	20

$
