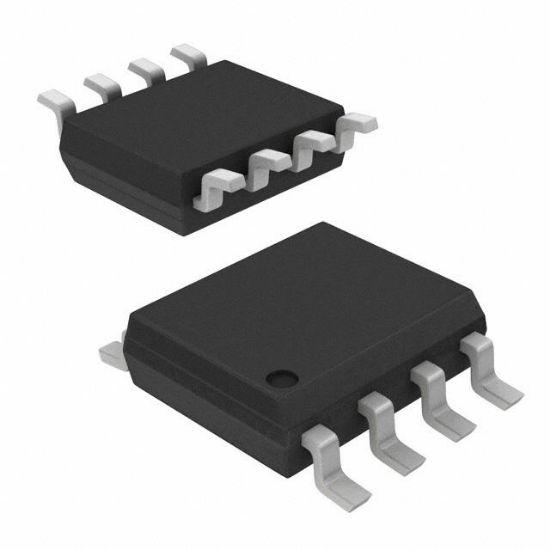

Picture of 2EDL05N06PFXUMA1

2EDL05N06PFXUMA1

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 8DSO

2EDL05N06PFXUMA1 Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	1.1V, 1.7V
Current - Peak Output (Source, Sink)	-
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	48ns, 24ns
Operating Temperature	-40°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	PG-DSO-8
