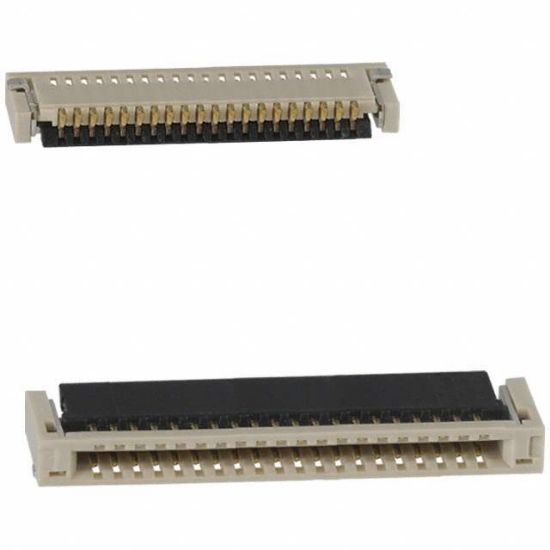

10051922-2010ELF

Amphenol

Availability: In stock

Products specifications

Attribute name	Attribute value
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	20
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.051" (1.30mm)
Locking Feature	Slide Lock
Cable End Type	Straight
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Operating Temperature	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
