Products specifications

Attribute name	Attribute value
Series	-
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.087" (2.20mm)
Number of Positions	24
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.217" (5.50mm)
Contact Length - Post	0.157" (4.00mm)
Overall Contact Length	-
Insulation Height	0.610" (15.49mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled
Features	Mounting Flange
Operating Temperature	-30°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	-
Insulation Color	Natural
Current Rating (Amps)	-
Voltage Rating	12VDC

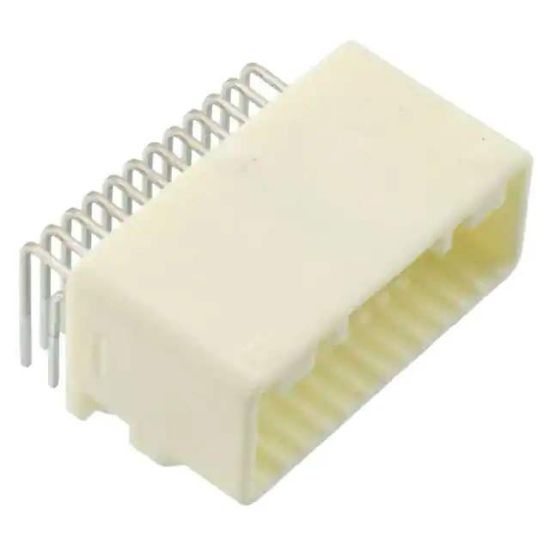

1-1318853-3

TE Connectivity

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
4900 pcs	3-7 Days	21+

Stock	Lead Time	Date Code
4900 pcs	3-7 Days	21
