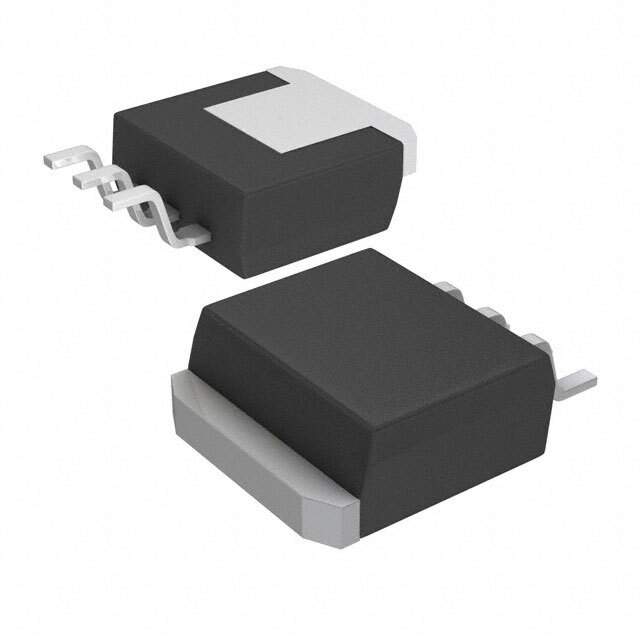

Picture of UA7805CKTTR

UA7805CKTTR

Texas Instruments

IC REG LIN 5V 1.5A DDPAK/TO263-3

UA7805CKTTR Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	25V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2V @ 1A
Current - Output	1.5A
Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	78dB ~ 68dB (120Hz)
Control Features	-
Protection Features	Over Temperature, Reverse Polarity
Operating Temperature	0°C ~ 125°C
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	TO-263-4, D2PAK (3 Leads + Tab), TO-263AA
Supplier Device Package	TO-263 (DDPAK-3)
