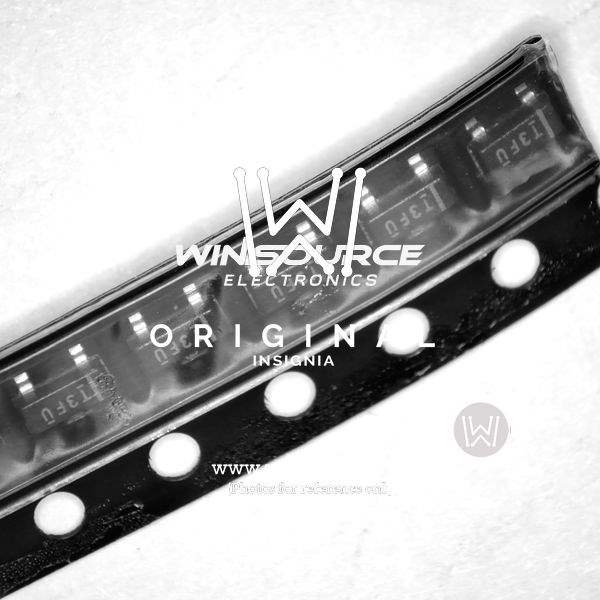

Picture of TL431BQDBZRQ1

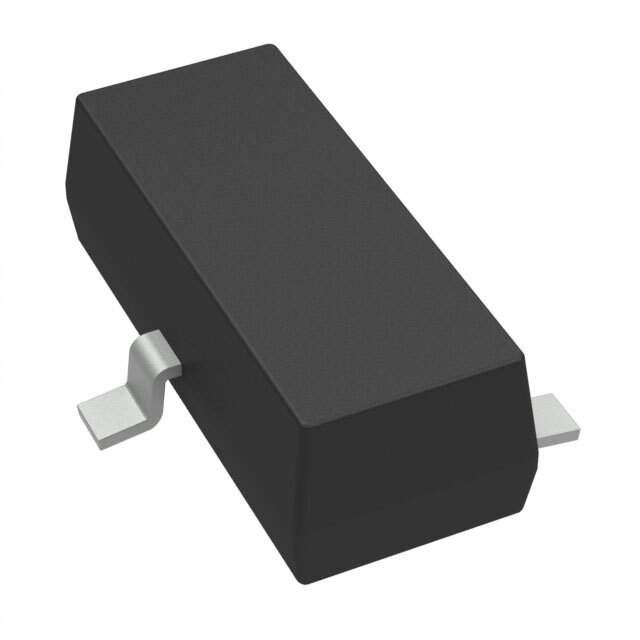

Picture of TL431BQDBZRQ1

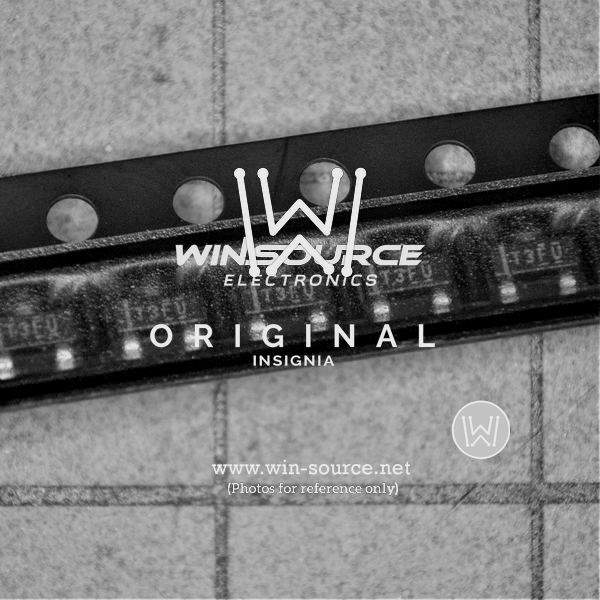

Picture of TL431BQDBZRQ1

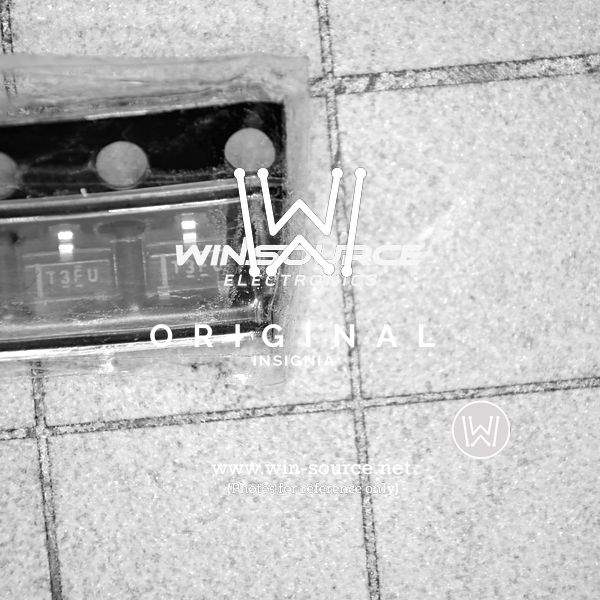

Picture of TL431BQDBZRQ1

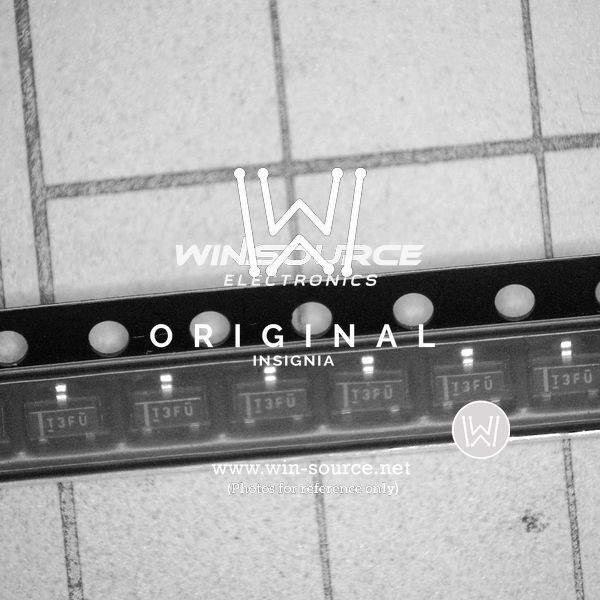

Picture of TL431BQDBZRQ1

Picture of TL431BQDBZRQ1

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Reference Type	Shunt
Output Type	Adjustable
Voltage - Output (Min/Fixed)	2.495V
Voltage - Output (Max)	36 V
Current - Output	100 mA
Tolerance	±0.5%
Temperature Coefficient	-
Noise - 0.1Hz to 10Hz	-
Noise - 10Hz to 10kHz	-
Voltage - Input	-
Current - Supply	-
Current - Cathode	700 µA
Operating Temperature	-40°C ~ 125°C (TA)
Grade	Automotive
Qualification	AEC-Q100
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3

TL431BQDBZRQ1

Availability: In stock

Bulk RFQ

Bulk BID

TL431BQDBZRQ1 - 4 verified offers available

Stock	Lead Time	Date Code
Out of stock	3-7 Days	13+

$

Stock	Lead Time	Date Code
426 pcs	3-7 Days	2402+

$

Stock	Lead Time	Date Code
3000 pcs	3-7 Days	22+

$

Stock	Lead Time	Date Code
3000 pcs	3-7 Days	22

$
