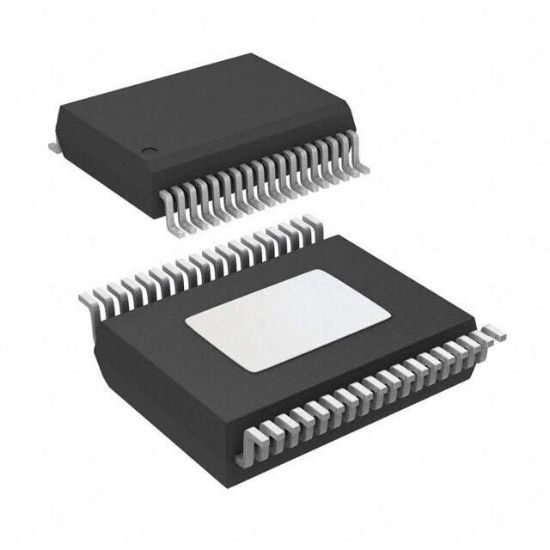

Picture of L9960T-TR

L9960T-TR

STMicroelectronics

IC HALF BRIDGE DRIVER PWRSSO36

L9960T-TR Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Output Configuration	Half Bridge (2)
Applications	General Purpose
Interface	SPI
Load Type	Inductive, Capacitive, Resistive
Technology	Power MOSFET
Rds On (Typ)	400mOhm LS + HS
Current - Output / Channel	-
Current - Peak Output	-
Voltage - Supply	4.5V ~ 5.5V
Voltage - Load	4.5V ~ 28V
Operating Temperature	-40°C ~ 170°C (TJ)
Grade	Automotive
Qualification	AEC-Q100
Features	Slew Rate Controlled
Fault Protection	Over Temperature, Short Circuit
Mounting Type	Surface Mount
Package / Case	36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package	PowerSSO-36 EPD
