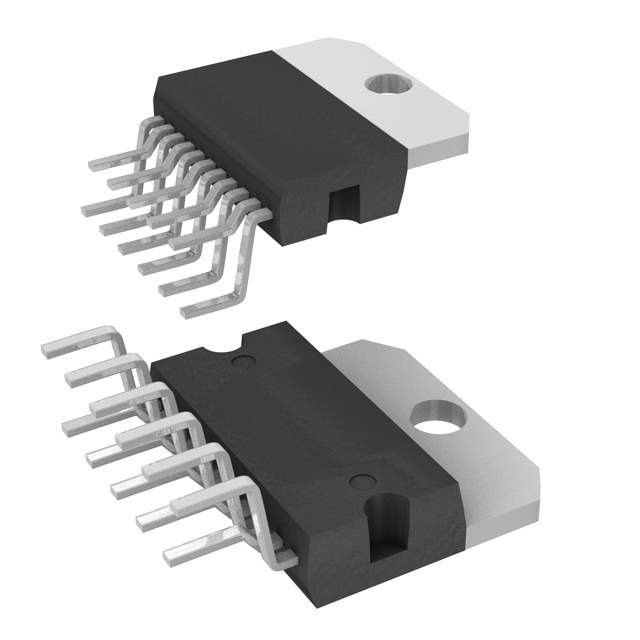

Picture of L6203

L6203

STMicroelectronics

IC HALF BRIDGE DRV 4A 11MULTWATT

L6203 Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tube
Product Status	Active
Output Configuration	Half Bridge (2)
Applications	DC Motors, General Purpose
Interface	Logic
Load Type	Inductive
Technology	BCDMOS
Rds On (Typ)	300mOhm
Current - Output / Channel	4A
Current - Peak Output	-
Voltage - Supply	12V ~ 48V
Voltage - Load	12V ~ 48V
Operating Temperature	-40°C ~ 150°C (TJ)
Grade	-
Qualification	-
Features	Bootstrap Circuit
Fault Protection	Over Temperature
Mounting Type	Through Hole
Package / Case	Multiwatt-11 (Vertical, Bent and Staggered Leads)
Supplier Device Package	11-Multiwatt
