Products specifications
Attribute name Attribute value
Series -
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 10kV/µs
Input Type DC
Output Type Open Collector, Schottky Clamped
Current - Output / Channel 50 mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise / Fall Time (Typ) 24ns, 10ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 20mA
Voltage - Supply 4.5V ~ 5.5V
Grade -
Qualification -
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package 5-SO

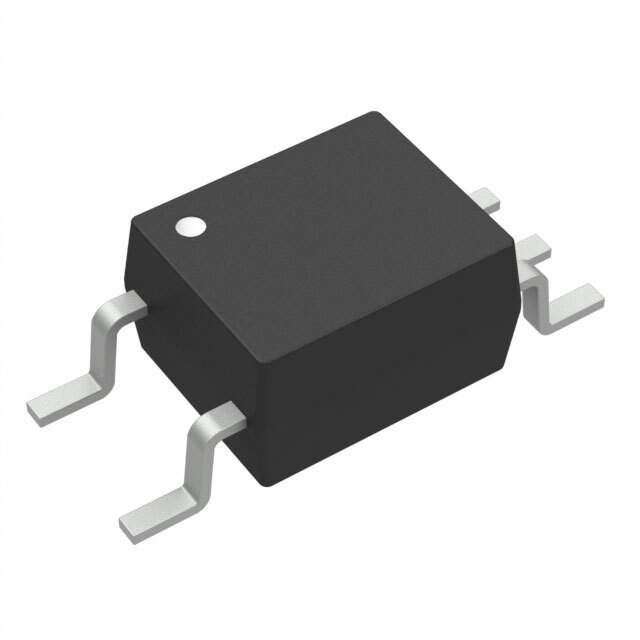

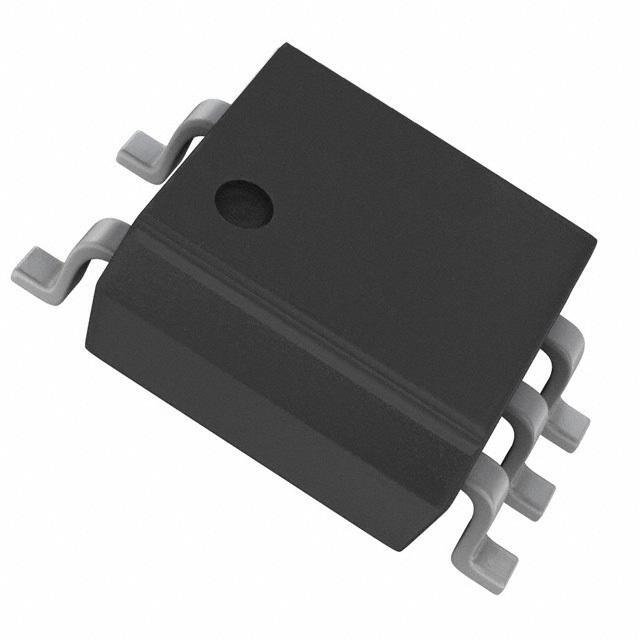

HCPL-M611-500E

Availability: In stock
PartsWake
Bulk RFQ Bulk BID

HCPL-M611-500E - 3 verified offers available

Stock Lead Time Date Code
3314 pcs 3-7 Days 2047;2102;2341
$
Stock Lead Time Date Code
24000 pcs 3-7 Days 22+
$
Stock Lead Time Date Code
24000 pcs 3-7 Days 22
$
