Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	15 mA
Data Rate	-
Propagation Delay tpLH / tpHL (Max)	550ns, 400ns
Rise / Fall Time (Typ)	-
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	4.5V ~ 30V
Grade	-
Qualification	-
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-DIP Gull Wing

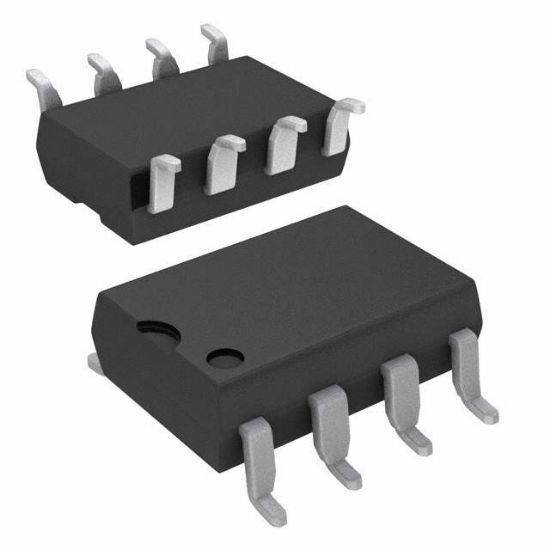

HCPL-4506-500E

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
256000 pcs	3-7 Days	23+24+25+
