Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	5kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	10MBd
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	24ns, 10ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	15mA
Voltage - Supply	4.5V ~ 5.5V
Grade	-
Qualification	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount

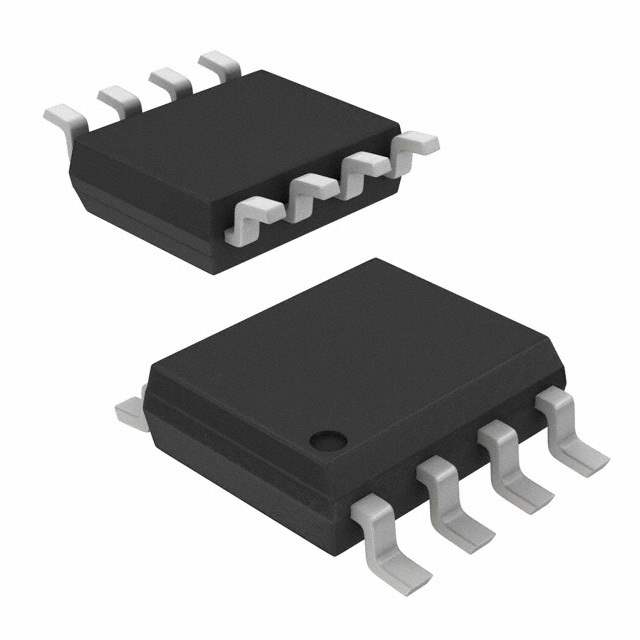

Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO Tall

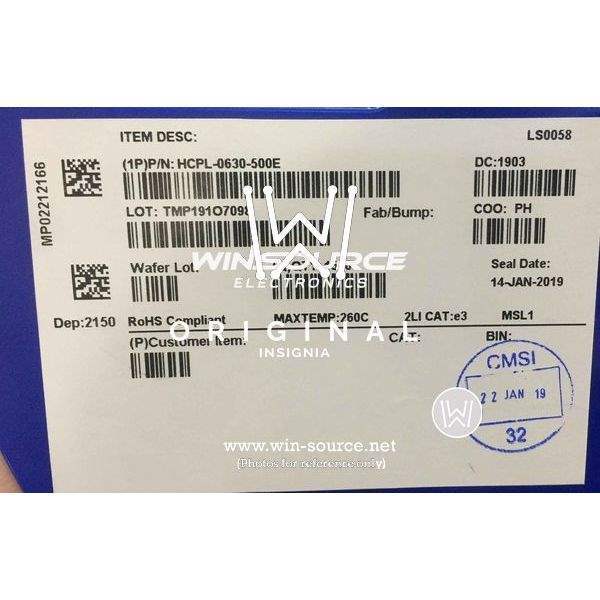

HCPL-0630-500E

Availability: In stock

Bulk RFQ

Bulk BID

Stock	Lead Time	Date Code
4815 pcs	3-7 Days	19+

Stock	Lead Time	Date Code
10500 pcs	3-7 Days	within two years

Stock	Lead Time	Date Code
6000 pcs	3-7 Days	24+

Stock	Lead Time	Date Code
531 pcs	3-7 Days	20+

Stock	Lead Time	Date Code
6000 pcs	3-7 Days	23+

Stock	Lead Time	Date Code
6000 pcs	3-7 Days	24
