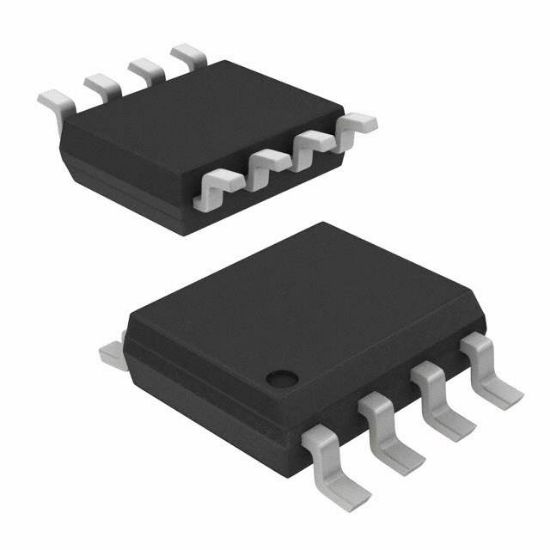

Picture of HCPL-0611-500E

HCPL-0611-500E

Broadcom Limited

OPTOISO 3.75KV OPN COLLECTOR 8SO

HCPL-0611-500E Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	10MBd
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	24ns, 10ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	4.5V ~ 5.5V
Grade	-
Qualification	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO Tall
