Products specifications
Attribute name Attribute value
Series -
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 10kV/µs
Input Type DC
Output Type Open Collector, Schottky Clamped
Current - Output / Channel 50 mA
Data Rate 15MBd
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise / Fall Time (Typ) 24ns, 10ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 20mA
Voltage - Supply 2.7V ~ 3.6V, 4.5V ~ 5.5V
Grade -
Qualification -
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO Tall

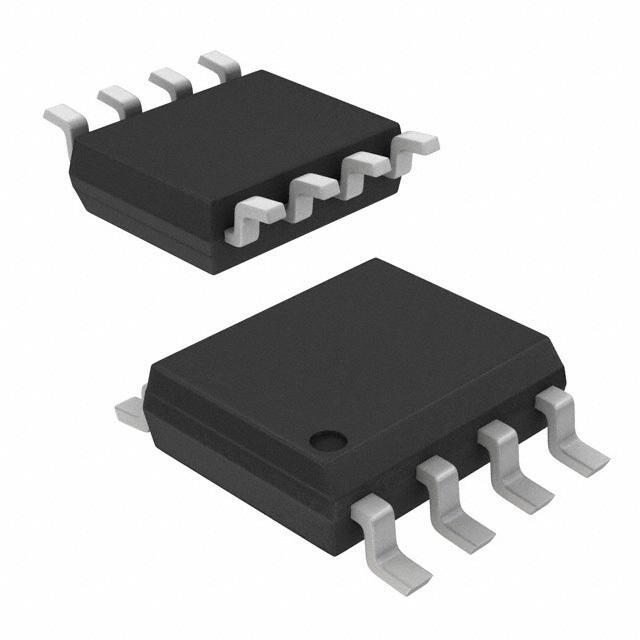

HCPL-060L-500E

Availability: In stock
PartsWake
Bulk RFQ Bulk BID

HCPL-060L-500E - 3 verified offers available

Stock Lead Time Date Code
143700 pcs 3-7 Days 20+
$
Stock Lead Time Date Code
3000 pcs 3-7 Days 2119
$
Stock Lead Time Date Code
34 pcs 3-7 Days 06/30/2022 00:00:00
$
