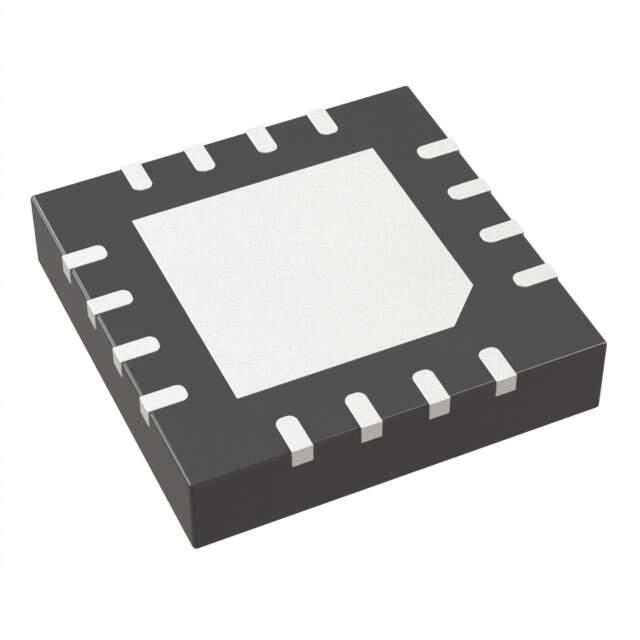

Picture of ADP1741ACPZ-R7

ADP1741ACPZ-R7

Analog Devices Inc.

IC REG LINEAR POS ADJ 2A 16LFCSP

ADP1741ACPZ-R7 Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	3.6V
Voltage - Output (Min/Fixed)	0.75V
Voltage - Output (Max)	3.3V
Voltage Dropout (Max)	0.28V @ 2A
Current - Output	2A
Current - Quiescent (Iq)	800 µA
Current - Supply (Max)	1.8 mA
PSRR	65dB ~ 51dB (1kHz ~ 100kHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP (4x4)
