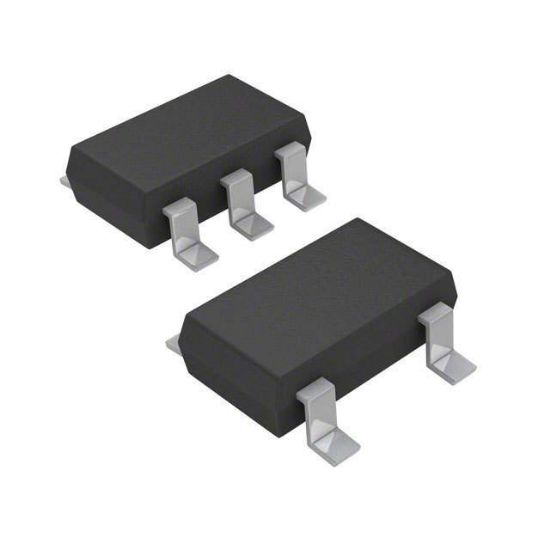

Picture of ADP123AUJZ-R7

ADP123AUJZ-R7

Analog Devices Inc.

IC REG LIN POS ADJ 300MA TSOT23

ADP123AUJZ-R7 Datasheet

$

Bulk RFQ

Bulk BID

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.15V @ 300mA
Current - Output	300mA
Current - Quiescent (Iq)	105 µA
Current - Supply (Max)	240 µA
PSRR	60dB (10kHz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Supplier Device Package	TSOT-23-5
