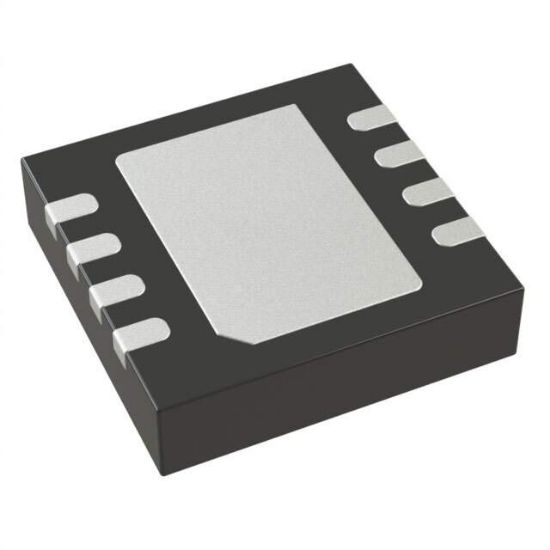

ADM7171ACPZ-3.0-R7

Analog Devices Inc.

IC REG LINEAR 3V 1A 8LFCSP

Bulk RFQ

Products specifications

Attribute name	Attribute value
Series	-
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6.5V
Voltage - Output (Min/Fixed)	3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.135V @ 1A
Current - Output	1A
Current - Quiescent (Iq)	2 mA
Current - Supply (Max)	6.3 mA
PSRR	60db ~ 20dB (100kHz ~ 1MHz)
Control Features	Enable, Soft Start
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Grade	-
Qualification	-
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (3x3)
